【移动式五分离筛分设备-筛沙机简介】
本套设备为移动式五分离筛分设备,是我公司根据客户需求进而研发设计而成;
本设备设计结构合理紧凑,发电机组集成在底盘上,附带牵引&转向系统,可以使用牵引车辆轻松移动至工作场地;其中筛分系统使用了新型核心技术的绞洗式滚筒筛,其优势如下:
滚筒筛动力采用双链条驱动设计,动能传递均匀、传递效率高,可以有效节省用电量;
内层筛采用冲孔工艺制作,内含多条铰刀从头部覆盖至尾部,能够对物料进行充分绞洗脱泥,极大的提高了筛分效率;
滚筒筛供水系统采用中央供水+侧供水方式,中央供水直冲滚筒筛底部物料;
侧供水负责冲洗外层筛网,能够有效防止外层筛网堵孔。

进料斗进料采用高压水反冲系统,可以保证均匀进料;

出料系统采用五条输送机进行排料。



Brief Introduction
This set of mobile screening machine in 5 size materials is according to customer’s requirement,designed and manufactured by our company;
The design of the equipment with new and reasonable and compact, the generate set is located on the truck chassis, with highly efficient driving and direction system, which can be easily moved to destination with driving car, in which the screening system with new type of reamers screening technology, the advantages are as follows:
The trommel screen with double chain driving design, the kinetic energy transfer uniform,transfer efficiency high,electricity consumption can be saved effectively;
The inner sieve is made by punching process, which contains reamers covering  all over from the head to end, which can fully wring the material and getting rid off the clay, which greatly improves the screening efficiency;
The water supplying system with central and sides water supplying,the central can swilling big size material;
The sides water supplying system to swill the screen mesh and can effectively prevent it from being plugged.

The feeding with high pressure water swilling the material which will be well distributed into trommel screen,the discharging with 5pcs transport conveyor.

移动式分离筛分设备


【技术参数】
Technical parameter


名称
Production Name

规格
Specification

数量
Quantity

功率/Kw
Power

备注
Remark

移动式五分离心筛分设备
Mobile  screening machine
In 5zize materials

底盘
Chasis

重型汽车底盘设计
Heavy truck/trailer chasis design
材质:25&30#工字钢
Material:
25&30#
长度8.5m
Length8.5m
三轴12条轮胎
3 axles 12 tyre

1套(Pcs)

-

含牵引&转向系统
Including driving bar and direction system

进料斗
Feed hopper

3.4*2.85米 材质:10#钢板
3.4*2.85m,material:10# steel

1套(Pcs)

-

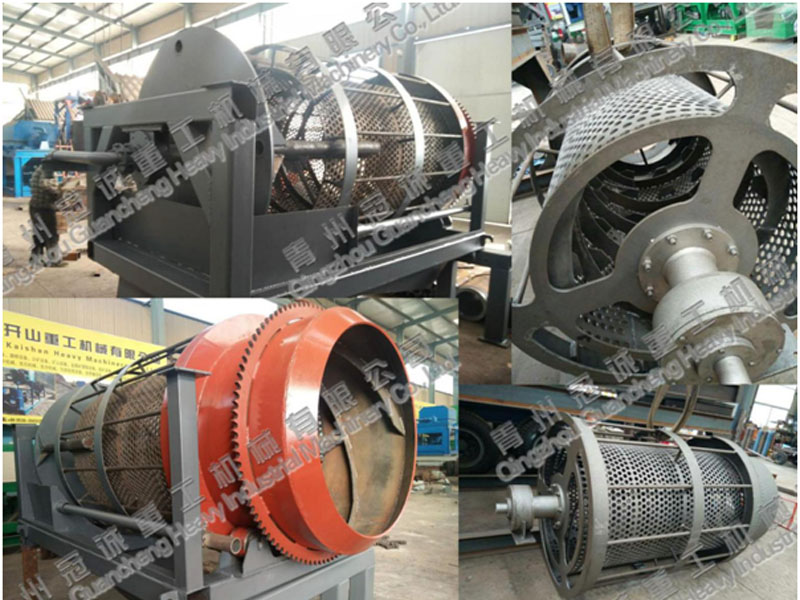

滚筒筛
Reamers trommel screen

内径1.3米,外径1.6米,
净筛网长度5米;
Inner dia.:1.3m,outer dia.:1.6m,screen mesh 5m
内含多条铰刀从头部覆盖至尾部;
Including reamers all over the trommel screen
中央+侧供水系统
Central and two sides water supplying

1套(Set)

7.5


输送机
Transport conveyor

动力采用齿轮组传动
The engine system with driving gears

5条(Pcs)

5.5*5


水泵
Water pump


1台(Set)

7.5


总功率
Total power

42.5KW(建议使用75KW发电机组Advise to use generate set 75KW

出厂价格
E.X.W. price

RMB:新价格来电索要15053659999(不含发电机组、税与运费Excluding generate set,tax and ocean freight)

以上移动式五分离筛分设备可根据需要改为移动式三分离心筛分设备

移动式分离筛分设备


 方案二为在方案一的基础上把0-4mm与4-8mm两条输送机改为两条Ø273排料管道。
Solution II base on solution I,the transport conveyor changed to be 2 pieces Ø273 discharging pipes.

【技术参数】
Technical parameter


名称
Production Name

规格
Specification

数量
Quantity

功率/Kw
Power

备注
Remark

移动式五分离心筛分设备

底盘
Chasis

重型汽车底盘设计
材质:25&30#工字钢
长度8.5m
三轴12条轮胎
Heavy truck/trailer chasis design
Material:
25&30#Double-T steel
Length8.5m
3 axles 12 tyre

1套(Set)

-

含牵引&转向系统
Including driving bar and direction system

进料斗
Feed hopper

3.4*2.85米 材质:10#钢板

1套(Pcs)

-


滚筒筛
Reamers trommel screen

内径1.3米,外径1.6米,
净筛网长度5米;
Inner dia.:1.3m,outer dia.:1.6m,screen mesh 5m
内含多条铰刀从头部覆盖至尾部;
Including reamers all over the trommel screen
中央+侧供水系统
Central and two sides water supplying

1套(Set)

7.5


排料管道
Discharging pipe

Ø273mm

2条(Pcs)

-


输送机
Transport coonveyor

动力采用齿轮组传动
Engine system with driving gear

3条(Pcs)

5.5*3


水泵
Water pump


1台(Set)

7.5


总功率
Total power

31.5KW(建议使用50KW发电机组Advise to use generate set 50KW

出厂价格
E.X.W.
price

RMB:新价格来电详询(不含发电机组、税与运费Not including generate set,tax and ocean freight)
